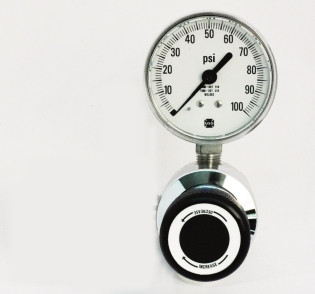

Stainless Steel High Purity A4 Line Pressure Regulator Model 3401LNV 10-100 PSIG NO VALVE
Hover over image to zoom
Product Description
CGA Connections are also sold separately and maybe Purchased by going under the CGA Connection Category.
All outlet fittings and Connections are also sold separately and maybe purchased by going under our Compression or Pipe Fittings Categories.
All Connections will be installed on your equipment at NO CHARGE.
NO OUTLET VALVE
| DESCRIPTION | ||||||||||||||
| The 3401L Series line regulators are designed to suit a large variety of applications. The high purity design makes them ideal for line drop regulators in instrumentation labs, with the 0.2 Cv orifice they are capable of very high flow rates. | ||||||||||||||
| FEATURES | ||||||||||||||
| • Small internal volume - less than 5cc. • Capable of large flows with only a small pressure drop. • High purity diffusion resistant, metal diaphragm construction. • Encapsulated seat. • NO OUTLET VALVE. • Designed to pass an inboard helium leak-rate test of 1x10 -9 cc per sec. • All parts ultrasonically cleaned prior to assembly. • Rear panel mounting holes. |
||||||||||||||
| APPLICATIONS | ||||||||||||||
| The 3401L Series is an excellent choice for gas flow applications with low inlet pressures and low differential pressure between inlet and outlet. The high inlet pressure rating makes also very suitable as a sensitive cylinder regulator for many low pressure corrosive gases when fitted with the proper CGA cylinder valve outlet connection. | ||||||||||||||
| SPECIFICATIONS | ||||||||||||||
| Max. Inlet Pressure: 3000 psig Operating Temp. Range: -40° to +185°F. Flow Coefficient(C v): 0.08 standard, 0.2 C v optional** Inlet and Outlet: 1/4" NPT female |
||||||||||||||
| MATERIALS OF CONSTRUCTION | ||||||||||||||
|
Body: 316L stainless steel
|
||||||||||||||
SKU:
REG3401LNV-100
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
